Description
| |
phone number；0638875774
address；2sam green road tunney germiston

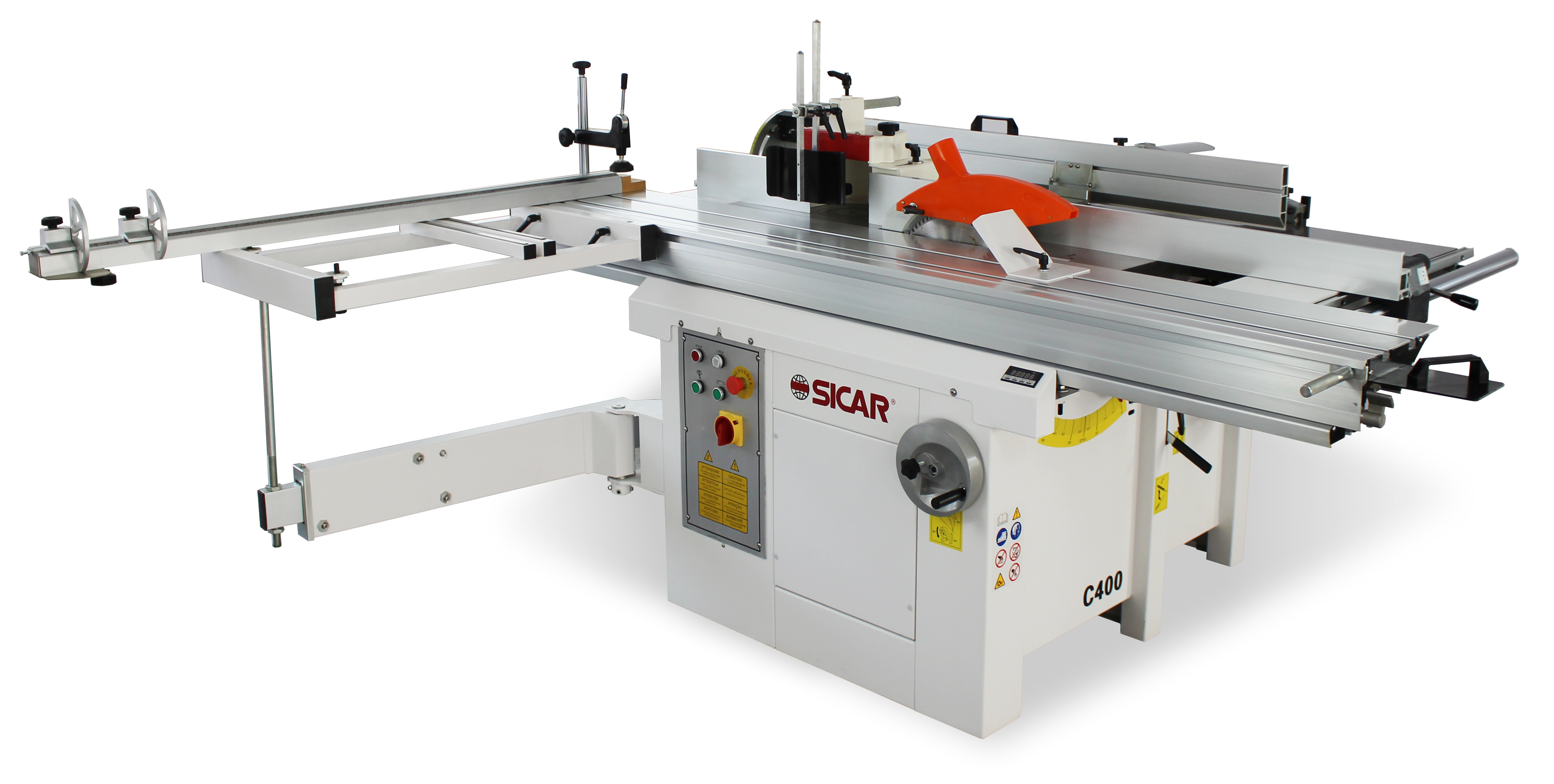

C400 Combined Machine combination machinery has been specifically designed be an industrial standard Woodworking machinery
R128500
The C400 Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a table saw and sliding table, planer, thicknesser and spindle moulder unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.
Being a professional standard machine, the C400 of course is fully adjustable and the accuracy is second to none. As far as accuracy goes it will not even be bettered by full sized industrial machines. With three independent class 1 motors providing ample power, changing function can be done with the flick of a switch rather than the going through the laborious task of changing belts.
The saw utilises a sliding beam which runs along side the blade like a panel saw. By running the beam this close to the blade, 100% accuracy is assured.
The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.
Several further options are also available, each machine can therefore be tailored to the users specific needs. These options include; heavy duty morticing unit, spindle moulder ring fence, power feeder and tenoning hood.
Features:
Panel saw sliding beam;Cast iron construction;3 x 2.2kw class 1 motors
Scoring for veneered boards;Sturdy swinging arm squaring frame
Micro adjust spindle moulder fence;Accurate cross cut fence with flipstops;Inward parallel swing planer table;Fully adjustable settings
Planer ； Unit ； C400
Working tables；mm；400x1800
Cutterblock diameter；mm；70
Cutterblock rotation speed；r.p.m ；5700
N. of knives；n°；3
knives dimensions；mm ；400x20x3
Max table adjustement；mm；4
Thicknesser；Unit；C400
Working table;mm;300x760
Feed speed;m/1' ;7
Max. working height; mm; 220
Min. working height; mm; 4
Cutterblock rotation speed; r.p.m.; 5700
Max. cutting depth; mm; 4
Mortiser ; Unit; C400
Working table; mm; 250x500
Longitudinal stroke; mm; 205
Trasversal stroke; mm; 95
Vertical stroke; mm; 90
Churck ; mm; 16
Churck rotation speed; r.p.m. ; 5700
Circular saw; Unit; C400
Working table; mm; 326x1112
Shaft rotation speed; r.p.m. ; 4500
Blade diameter; mm; 300
Blade bora diameter; mm; 30
Cutting height 90°; mm; 100
Max. distance between blade and fence; mm; 730
Blade inclination; 0° ; 45°
Max cutting height 45° ; mm; 50
Shaft rotation speed engraver; r.p.m. ; 7000
Engraver blade diameter; mm; 90
Engraver blade bora diameter; mm; 22
Shaper ; Unit ; C400
Working tables; mm; 326x1112
Shaft rotation speeds; r.p.m. ; 2000/3100/4400/7000
Standard shaft diameter; mm; 30
Spindle lenght; mm; 105
Shaft vertical stroke; mm; 115
Max. tool diameter; mm; 180
Max. tenoning depth; mm; 65
Tenoning carriage; Unit; C400
Carriage dimensions; mm; 1800x315
Carriage stroke; mm; 1800/2200
Standard accessories
N°2 clamp lever ;
Sharper fence;
Service wrenches;
Mortiser chuck;
Table extensions with swinging arms; mm; 860x600
Guards on mortiseur chuck;
3 pcs. planing knives;
Planer guide;
Saw guide;
Bridge sefety hood on planer;
3-phase motor power; HP - KW; 4,0 - 3,0
Weight ; kg; 645
Optiona accessories; Unit; C400
Single-phase motor; HP - KW; 4,0 - 3,0
Increasing 3-phase motor; HP - KW; 5,5 - 4,0
Set of wheels with feeding steering bar
Wescott(Diameter); mm; 16
Carriage stroke; mm; 2200/2200
Carriage stroke; mm; 2600/2600
Tenoning with protection shelf
|
| | |
|
