Info About: Cut Off Saw, Pneumatic Mj276
| |
|
|
|
| | |
|
Contact Seller | |
| You must be logged in to access these Details | |
| | |
|
| | |
|
Description
| |

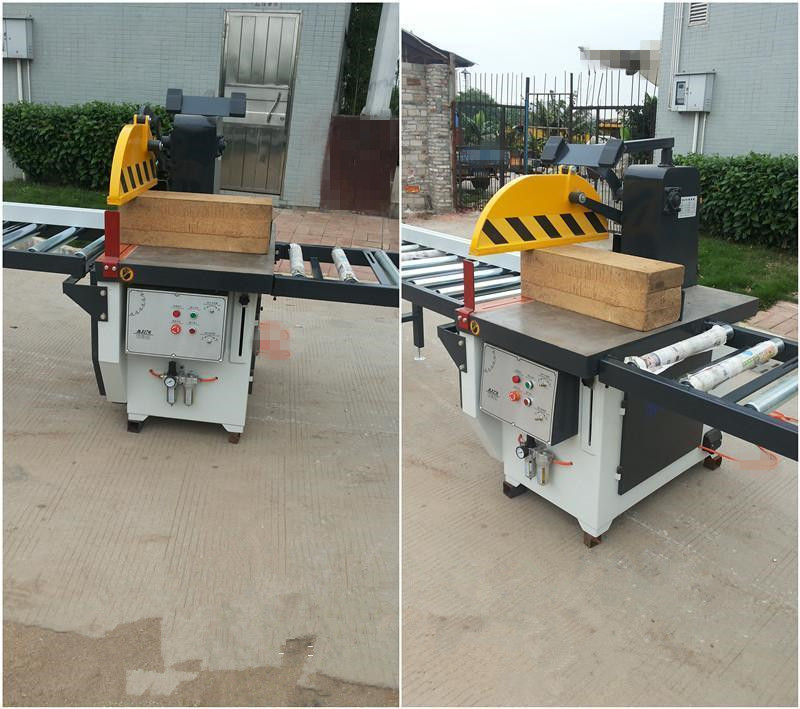

Under-table, Cut Off Saw, Pneumatic Mj276 Woodworking machinery
Product Description
cut off saw: a new type of table saws; security; saw blade smooth surface, suitable for short material hardwood, large diameter round wood processing. Specifications adjustable!
Features:
One: the use of low-power motor to do power, save energy, and the use of pneumatic devices clamping wood, fast and flexible, safe and reliable.
Second: the use of high-precision linear shaft orbit to use light and flexible, greatly reducing the labor intensity of the producers.
Three: the use of large-size ultra-thin saw blade, no cooling, can be processed out of the product is smooth, standard, without the need for planer and other equipment, two processing.
Instructions for use:
1, the price of the table saw the operation before the check whether the sharp saw blade saw blade, saw blade must be flat, jagged sharp, not continuous teeth two, the length of the crack shall not exceed 20mm, the end of the crack to be rushed to the hole, Minute, see the table saw running is normal.
2, check the blade rotation direction, to ensure that the blade rotation direction is correct.
3, was sawing the thickness of wood to saw the wood can be exposed to 10 ~ 20mm, jagged must be on the same circle.
4, after the boot, to be normal after the speed of sawing. Sawing material should not be shaking or high when the wood, the case of wood to slow uniform feeding. Saw length should not be less than 100mm, close to the end when the application of push stick feeding.
5, such as saw line deviation, should be gradually corrected, not fierce pull, so as not to damage the saw blade.
6, the operator shall not stand and face the rotation of the blade with the direction of centrifugal operation, the arm shall not work across the blade.
7, the machine is running, found abnormal should immediately turn off the power to the workshop supervisor to reflect, non-professional maintenance personnel shall not be unauthorized removal of machinery and equipment.
8, the machine must be dedicated, other staff without the consent of the workshop supervisor, not allowed to use.
9, is strictly prohibited wearing gloves, wearing slippers, sick, drink operation machine.
10, the end of the operation, cut off the power for the machine dust, the remaining material clean, should be refueling from time to time, maintenance.
Under-table, Cut Off Saw, Pneumatic (Jumpsaw) Make:
Model: MJ276; Saw blade diameter: 600 mm;
Saw blade: Bore = 25.4, Kerf = 3.4 mm, Shaft speed: 1850 rpm;
Electric motor: 380 Volt, 7.5 kW;
Maximum working height: 190 mm;
Maximum working width: 536 mm;
Pneumatic action with foot pedal;
Pneumatic air pressure: 6 Bar;
Dust outlet diameter: 100 mm;
Condition: NEW; Guarantee: 12 month;
Overall dimensions: 4250 x 1150 x 1300 mm;
Weight, with conveyors: ca 550 kg; E.&O.E; Price,
NEW: On request
