Info About: Multi saw KR 520 RAIMANN
| |
|
|
|
| | |
|
Contact Seller | |
| You must be logged in to access these Details | |
| | |
|
| | |
|
Description
| |

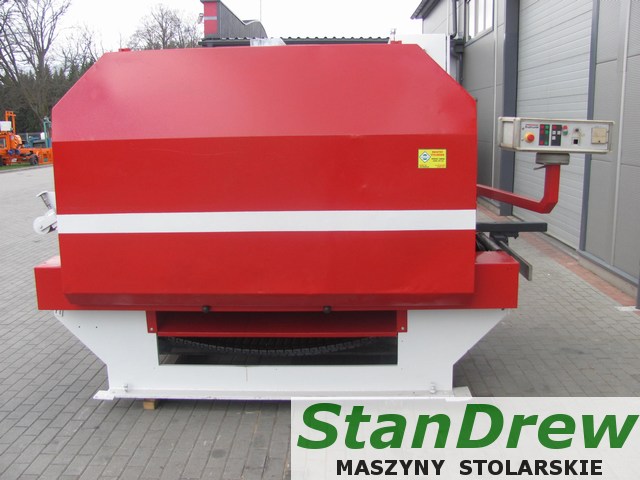

Multi saw KR 520 RAIMANN
- Machines in stock
- After reconditioned
- Very good condition
Technical data:
- Track width 550 mm
- The swath width of 600 mm
- Maximum cutting height 170 mm
- The diameter discs of 250 mm to 420 mm
- Spindle diameter 60 mm
- 80 mm diameter sleeve
- Minimum length of the 75 cm
- Main Engine 75 kW
- Engine feed the caterpillar 3 kW
- The engine feeds rolls of 2 x 1.5 kW
- Feed continuously adjustable from 0 to 50 m / min
- Feed adjustable inverter
- Centralized lubrication caterpillar
- Automatic height adjustment of the spindle
- Automatic height adjustment of rolls
- Upper shafts extending
- The spindle has a steady
- Conveyor for receiving sawdust
- Starowa panel
- Centralized lubrication caterpillar
- The caterpillar with interchangeable inserts
- Independent pressure roller at the outlet
Overall dimensions machine:
- Length 330 cm
- Width 225 cm
- Height 220 cm
- Weight 7000 kg
|
| | |
|
Warranty & Guarantee
| |
 WARRANTY TYPE: Not Offered
 GUARANTEE TYPE: Not Offered
|
|
