Description
| |

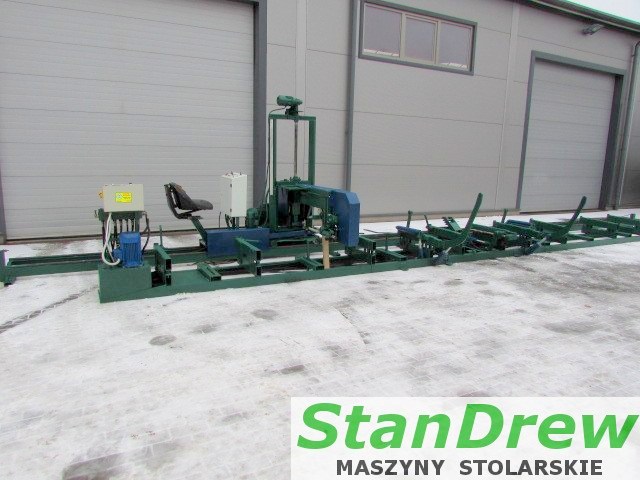

Trak belt levels MM 700HK LIGNUMA
TECHNICAL PARAMETERS :
- Machines in stock
- Polish Machine Production
- Track length of 10,000 mm
- Max. length of cut logs 10000 mm
- Wheel diameter 475 mm belts
- The maximum diameter of 750 mm cut logs
- The thickness of the saw 0,87-1,10 mm
- The width of the band saw 31,7-38,0 mm
- Length 4000 mm bandsaw
- Divorced 0.3 - 0.5 mm
- Horizontal clearance of 750 mm
- Vertical clearance of 1000 mm
- Scope feed speed 0-20 m / min
- Main drive motor power 11.04 kW
- Drive motor power of 0.55 kW Working feed
- Vertical drive motor power 0,37 kW
- Hydraulic loading logs
- Auto-rotate logs
- Hydraulic tensioner saws
- Hydraulic self-leveling
- A hydraulic ram logs
- Current frequency of 50 Hz +/- 10%
- Supply voltage 3x400 V
Trak belt type MM-700H-K-HK-stationary intended
for longitudinal sawing wood in the form of beams, timbers and boards.
Trak is used in sawmills and in the furniture industry.
The machine's design and the principle of its operation allows easy for one person
However, in order to improve the organization of work we recommended to operate the machine by double staff,
One person controls the machine, the other receives the cut elements.
|
| | |
|
