Description
| |
NEW - Normal price - R488 000-00. Price for April only - R439 000-00 (10 PERCENT SAVING) Price excludes vat.

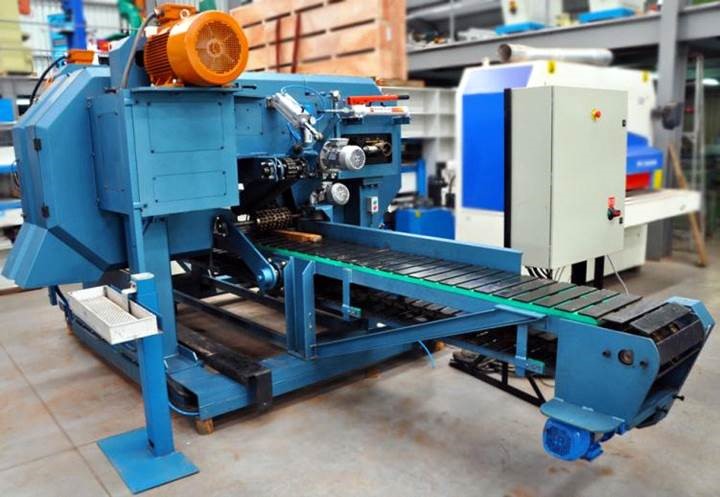

TITAN T4 Twin Band Resaw with Quick Self Adjusting height–New–South Africa
- The TITANResaw is an ultra-robust resawing system locally manufactured here in South Africa.
- With powerful motors and Twin Head configuration allowing two simultaneous cuts in one pass
- The TITAN T4 offers ultra-fast size change. At under 0.3 seconds, this high-speed size change makes it possible to change - size for each and every sideboard, even when feeding at over 20 pieces per minute. As a result, optimal recovery is achieved; unlocking extra product potential that previously would have gone to waste. Importantly, no sorting of material - is needed prior to this machine.
- Heavy duty slat-chain feed with variable speed
- Driven hold downs on both the in and outfeed for fast for accurate material feed
- Robust TITAN head rig column for high strain, high-speed sawmilling
MODEL T4 - R / TR
Head configuration Twin head
Throat width 430mm
Material height Min - 15mm; Max - 320mm
Blade width 100mm (5 inches)
Blade kerf 2.5mm
Main saw motor 2x 30kW (40.2HP)
Feed motor 1.5kW (2HP)
Feed speed 0 - 60m/min (motor and blading dependant)
Electronic variable feed speed control
Feed type Heavy duty slatt-chain
Band wheel diameter 950mm
Band wheel width 100mm
Sizing method Patented pneumatic fast size change
Saw tensioning Hydraulic with spring
Hold downs Driven with pneumatic pressure
Optional extras Board scanning and intelligent sizing, Pneumatic assisted hold down
|
| | |
|
Warranty & Guarantee
| |
 WARRANTY TYPE: Dealer
3 months
 GUARANTEE TYPE: Not Offered
|
|
